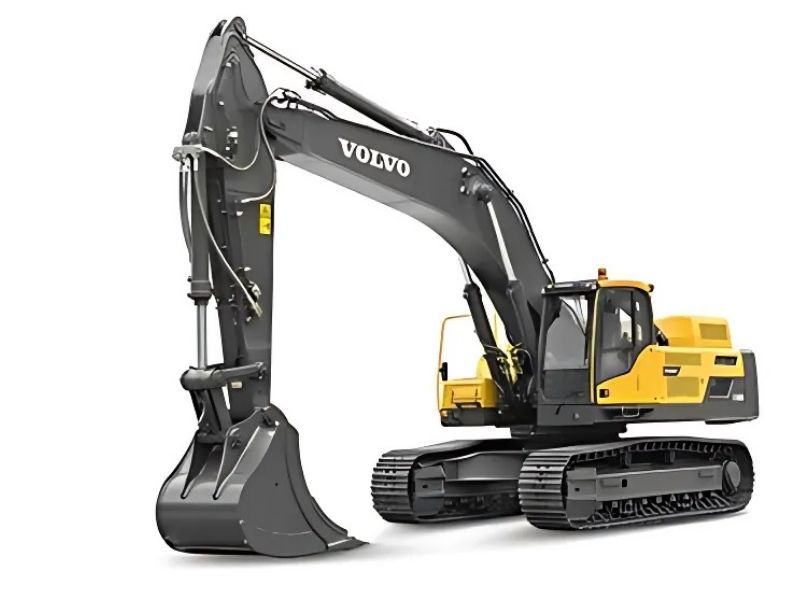

Volvo EC480D Base

Specifications of Volvo EC480D Base

Engine

• Bore 131
• Displacement 12.8
• Gross (SAE J1995) 265 / 360
• Make/ type VOLVO
• Max. Torque 1800 / 1400
• Model D13F
• No. of cylinders 6
• Power output at Net (ISO 9249 30 / 1800
• Rated Power (Net SAE J1349) 256 / 348
• Stroke 158

Service Refill Capacities

• Engine Coolant 60
• Engine Oil 42
• Fuel Tank 685
• Hydraulic system, total 520
• Hydraulic Tank 270
• Swing reduction unit 2 x 6
• Travel reduction unit 2 x 6

Hydraulic System

• Implement 32.4 / 35.3
• Main pumps type 2 x variable displacement axial piston pumps
• Maximum flow. 2 x 358
• Pilot circuit 3.9
• Pilot pump Gear pump
• Swing circuit 25.8
• Travel circuit 32.4

Cab

• Cab Each track is powered by an automatic two-speed shift travel motor. The track brakes are multi-disc. spring-applied and hydraulic released. The travel motor, brake and planetary gears are well protected within the track frame

Undercarriage

• Link pitch 215.9
• No. of bottom rollers 2 x 9
• No. of top rollers 2 x 2
• Shoe width, double grouser 600
• Shoe width, triple grouser 600/700/800/900 mm

DRIVE

• Gradeability 35
• Max. travel speed 3.1 / 5.1

ELECTRICAL SYSTEM

• Alternator 28 V / 80 A
• Batteries 2 x 12
• Battery Capacity 200 Ah
• Machine Voltage 24 V

SWING SYSTEM

• Max. swing speed 166.3
• swing system The swing system uses an axial piston motors. driving a planetary gearbox for maximum torque. An automatic holding brake and antirebound valve are standard.
