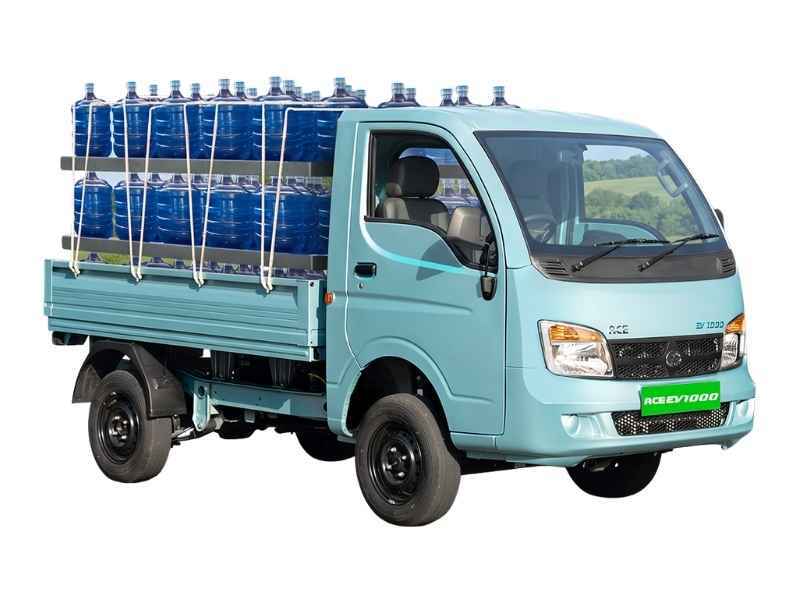

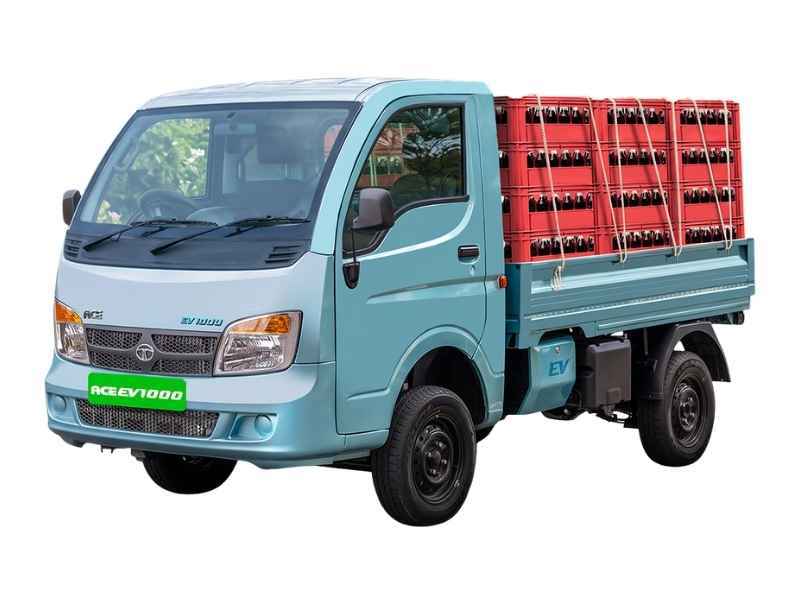

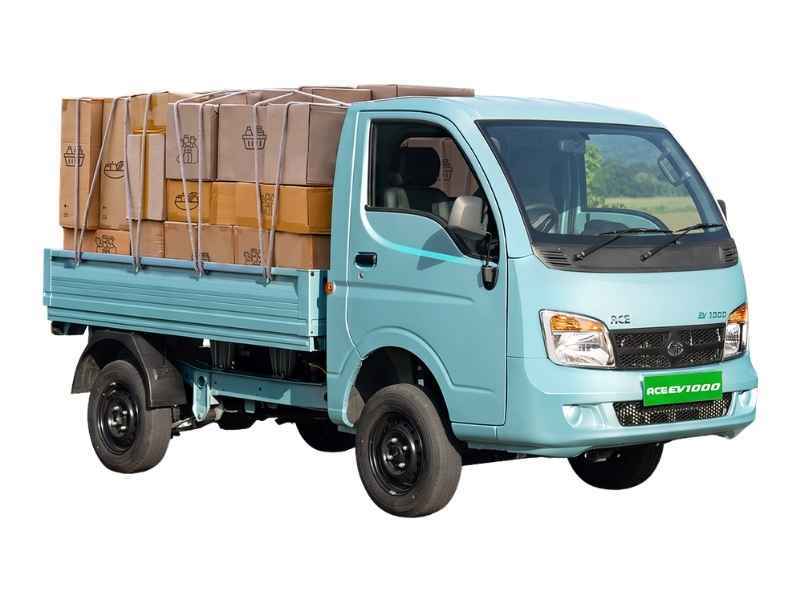

Tata Ace EV 1000 Flatbed/2100

Specifications of Tata Ace EV 1000 Flatbed/2100

Engine

• Battery Capacity 21.3 kWh
• Max Power 36 hp
• Max Torque 130 Nm

Steering

• Steering Mechanical, variable ratio

Suspension

• Front Rigid Suspension
• Rear Leaf Springs

Transmission

• Clutch Clutch free, Rear wheel drive
• Gear Box Single Speed
• Transmission Manual

Brakes

• Brakes Dual circuit Hydraulic brakes Front–Disc, Rear Drum

Wheels

• Number of Wheels 4
• Wheelbase (mm) 2100 mm

Fuel Tank

• Fuel Type Electric

Dimension & Weight

• Ground Clearance 160
• Overall Height 1840
• Overall Length 3800
• Overall Width 1500
• Payload (Kgs) 1000 Kgs
• Seating Capacity D+1

Track

• Gradeability 20 %
• Max Speed 60
• Min. Turning Circle Diameter 4300

Safety & Comfort

• Seat belts Yes

Additional information

• Body Option Flat Body
• Cabin Type Day Cabin
• Chassis Type Chassis with Cabin
• GVW / GCW (Kgs) 2120 kg
• Kerb Weight (Kgs) 1120
• Range 161 Km/charge
