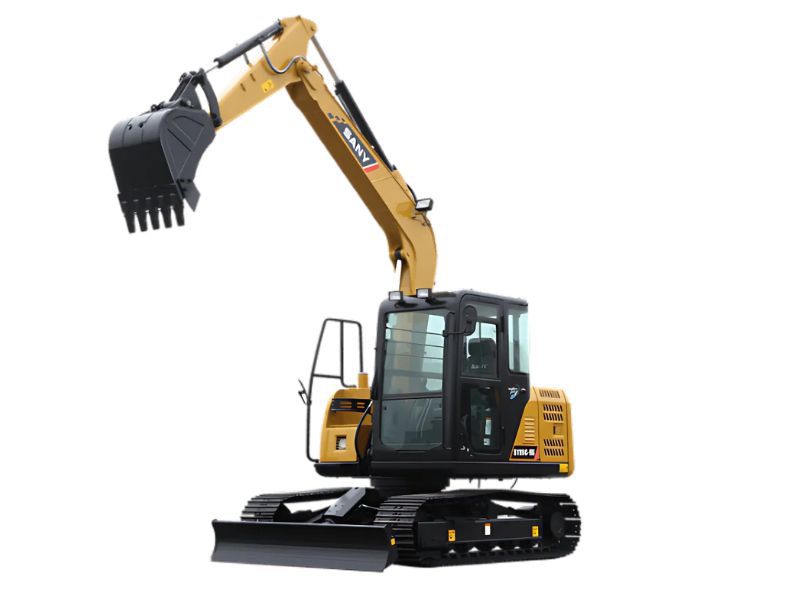

Sany SY80C-99S Mini Exacavators

Specifications of Sany SY80C-99S Mini Exacavators

Engine

• Battery 12 V system(2-12V)
• Displacement 2.615 L
• Max. Torque 225N.m @1400 rpm
• Model Kubota V2607-DI-T-ES09
• Rated Engine Power 58HP (43kW)/2000rpm
• Type 4 Cylinder, Inline, Water Cooled

Service Refill Capacities

• Engine Oil 10 L
• Fuel Tank 150 L
• Hydraulic Tank 120 L (Tank) 90 L (Refill)
• Radiator 12 L
• Swing device 1.5 L
• Travel device 2x2.5 L

Hydraulic System

• Main pumps Variable Displacement Axial Piston Pumps
• Max. Flow 149 Ipm

Undercarriage

• Lower Roller (Each side) 5
• Std. Arm 1620 mm
• Std. Boom 3720 mm
• Std. Bucket 0.32 m³ GP
• Std. Track 450 mm
• Track Shoes (Each Side) 39
• Upper Roller (Each side) 1

SWING SYSTEM

• Swing motor 1 Axial Piston Motor with Swing Holding Brake
• Swing speed 11.5 rpm

DIGGING FORCES

• Arm Crowding Force 38 kN
• Bucket DIGGING FORCES 56 kN

WORKING RANGE

• Max. Cutting Height 7060
• Max. Depth of Blade Down 360
• Max. digging depth 4020
• Max. digging reach 6240
• Max. dumping height 5155
• Max. Ground Clearance of blade UP 350
• Max. Height at Min. Swing Radius 5550
• Max. vertical boom digging depth 3290
• Min. swing radius 1720

Travel System

• Gradeability 70%/35°
• Ground Pressure 33 kPa
• Max traction force 58 kN
• Max. Travel Speed (L/H) 4.4/2.4 km/h
• Travel Motors 2 Axial Piston Motor with Parking Brake

RELIEF VALVE SETTINGS

• Implement Circuit 28 Mpa
• Pilot Circuit 3.5 Mpa
• Swing Circuit 23.5 Mpa
• Travel Circuit 26.3 Mpa

Dimension

• Distance between Tumbles 2195
• Min. Ground Clearance 380
• Overall Height 2610
• Overall Length 6095
• Overall Width 2220
• Rear-end Swing Radius 1800
• Std. Track Shoe Width 450
• Track Gauge 1750
• Under Carriage Length 2820
• Upper Width 2040

CONTROL SYSTEM

• Control Hydraulic System Load Sensing System, DOMCS
• Remote Monitoring System GPRS, GPS, GIS
• Working Modes SLB
