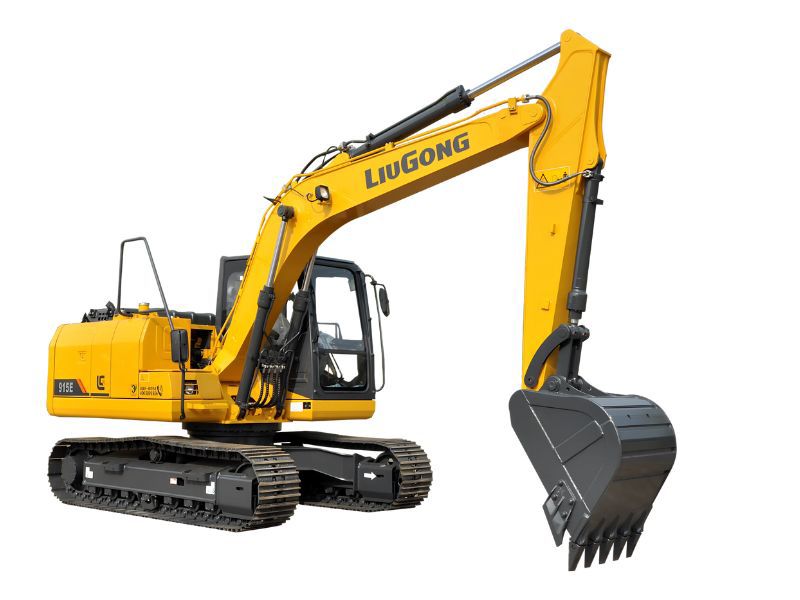

Liugong 915E Excavators

Specifications of Liugong 915E Excavators

Engine

• Aspiration Turbocharged
• Displacement 3.9 L
• Engine Model 4BT3.9
• Make CUMMINS
• No of cylinders 4
• Peak Torque 385 N-m @ 1,300 rpm
• Power 100 hp @ 2,200 rpm

Dimensions

• Arm Options 2,100 mm
• Boom 4,600 mm
• Depth of 8 Bottom 4,828 mm
• ISO Arm Break Out Force 73.5 (79.4) kN
• ISO Bucket Break Out Force 89.8 (96.9) kN
• Maximum Digging Depth 5,068 mm
• Maximum Digging Radius 7,924 mm
• Maximum Dumping Height 6,024 mm
• Maximum Ground Digging Radius 7,784 mm
• Maximum Vertical Digging Depth 4,428 mm
• Min Swing Radius 2,400 mm

Drive System

• Drive Motor Axial Piston Motor
• Drive Reduction Planetary Gear
• Drive Type Hydrostatic
• Gradeability 70% (35°)
• Max. Drawbar Pull 122 KN
• Travel Speed (High/Low) (5.4/3.2) Km/h

Hydraulic System

• Implementation System Pressure 34.3 MPa
• Main Pump Type Two Variable Displacement Piston Pumps
• Max. Flow 2 x 120 LPM
• Pilot pump Maximum flow 20 LPM
• Pilot System Pressure 3.9 MPa
• Swing System Pressure 25 MPa
• Travel System Pressure 34.3 MPa

Undercarriage

• Bottom Rollers (each side) 7 Each Side
• No. of upper roller 1 Each Side
• Track Guard 2 Each Side
• Track Shoe Width (Triple Grouser) 500 mm
• Track Shoes (Each Side) 45 Each Side

Electrical

• Voltage 24 V

Buckets

• GP Bucket 0.73 m³
• HD Bucket 0.65 m³

ELECTRICAL SYSTEM

• Working spotlights – Cummins Version 5

SERVICE CAPACITIES

• Cooling System 21 L
• Engine Oil 9 L
• Fuel Tank 245 L
• Hydraulic Tank 160 L
• Swing Drive 2.8 L
• Travel Device 2.5 Lx2

SWING SYSTEM

• Swing bearing lubrication Grease Bathed
• Swing motor Axial Piston Motor
• Swing reduction Planetary Gear
• Swing speed 12.9 rpm
