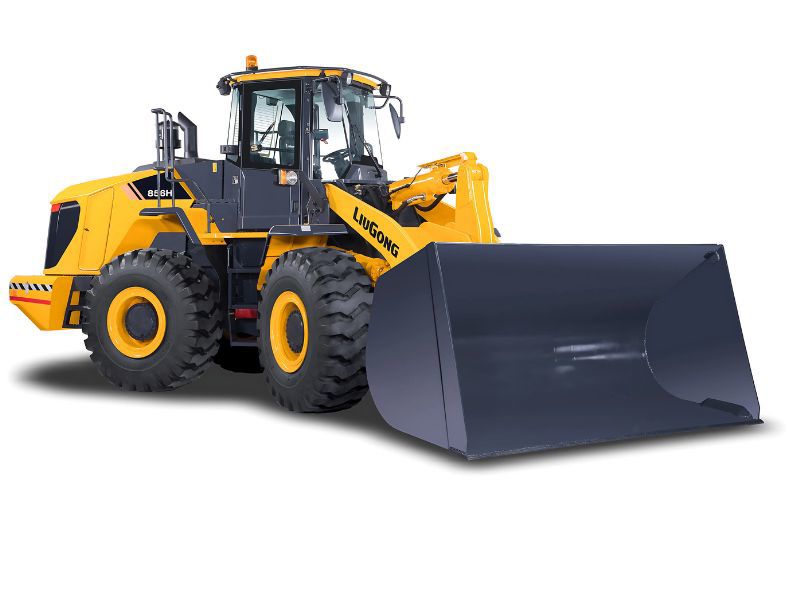

Liugong 856H Max

Specifications of Liugong 856H Max

Engine

• Aspiration Turbocharged, Intercooled
• Bucket Capacity 3.5 m³
• Displacement 9.41 L
• Emission rating CEV Stage IV
• Engine Yuchai
• Make Yuchai
• Model YCK09230-B460
• Net Power 225 HP (168 kW) @ 2000 rpm
• Number of Cylinders 6
• Operating Weight 18,350 Kg
• Peak Torque 1200 N-m @ 1300 rpm

Transmission

• Forward Speed F1/F2 12/37 Km/hr
• Make LiuGong
• Number of Speed Forward 2/Reverse 1
• Reverse R1 17 Km/hr
• Torque Convertor Twin Turbine, Four Members
• Type Powershift

Service Refill Capacities

• Axles (each) 38 L
• Cooling System 50 L
• Engine Oil 26 L
• Fuel Tank 280 L
• Hydraulic System 225 L
• Transmission & Torque converter 35 L

Steering

• Maximum Articulation Angle + 38°
• Pump Type Gear Pump
• Steering Relief Pressure 21 MPa
• Steering System flow 128 LPM
• Steering Type Articulation

Hydraulic System

• Controls Single Pilot Lever
• Cycle Time 9.5 Sec
• Main Pump Flow 332 LPMsFF
• Main Pump Type Gear Pump
• Main Relief Pressure 19 MPa

Tires

• Tire Size 23.5-R25
• Type Radial and Tubeless

Axles

• Axle Oscillation Front Fixed and Rear ±10°
• Make LiuGong
• Type Dry Type Axle (Planetary Hub Reduction)

ELECTRICAL SYSTEM

• Batteries 12 V x 2
• Voltage 24 V

BUCKET SYSTEM

• Coal 5.5 m³
• General Purpose Bucket 3.5 m³
• Rock Bucket 2.8 m³

Braking System

• Parking brake Drum Brake Mechanical Actuation
• Secondary brake Manually Applied on Low Pressure
• Service brake 4 Wheel applied air over hydraulic with Independent circuit for front & rear axle
