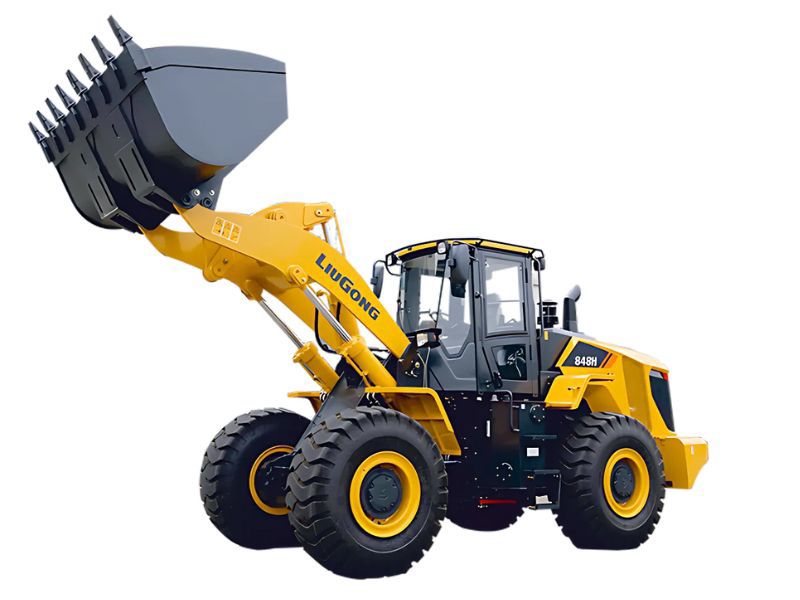

Liugong 848H Wheel loader

Specifications of Liugong 848H Wheel loader

Engine

• Aspiration Turbocharged, Intercooled
• Displacement 9.41 L
• Emission rating CEV Stage IV
• Make Yuchai
• Model YCK09220-B460
• Net Power 220 HP (162 kW) @ 2000 rpm
• Number of Cylinders 6
• Peak Torque 1100 Nm @ 1400 rpm

Transmission

• Forward Speed F1/F2 13/40 Km/hr
• Make Liugong
• Number of Speed Forward 2/ Reverse 1
• Reverse R1 17 Km/hr
• Torque Convertor Twin Turbine, Four Members
• Transmission Type Powershift Transmission

Service Refill Capacities

• Axles (each) 33 L
• Cooling System 50 L
• Engine Oil 28 L
• Fuel Tank 280 L
• Hydraulic System 225 L
• Transmission & Torque converter 25 L

Steering

• Maximum Articulation Angle ± 38°
• Pump Type Gear Pump
• Steering Relief Pressure 16.5 Mpa
• Steering System flow 124 LPM
• Steering Type Articulation

Hydraulic System

• Controls Single Pilot Lever
• Cycle Time 10.3 Sec
• Main Pump Flow 332 Lpm
• Main Pump Type Gear Pump
• Main Relief Pressure 17 Mpa

Tires

• Tire Size 23.5-25-16PR

Axles

• Axle Oscillation Front Fixed and Rear +12°
• Make LiuGong
• Model Dry Type Planetary Hub Reduction
• Type Dry Type Planetary Hub Reduction

BUCKET SYSTEM

• General Purpose Bucket 2.8 m³
• Rock Bucket 2.0 m³

Braking System

• Parking brake Drum Brake Mechanical Actuation
• Secondary brake Manually Applied on Low Pressure
• Service brake 4 Wheel applied air over hydraulic with Independent circuit for front & rear axle
