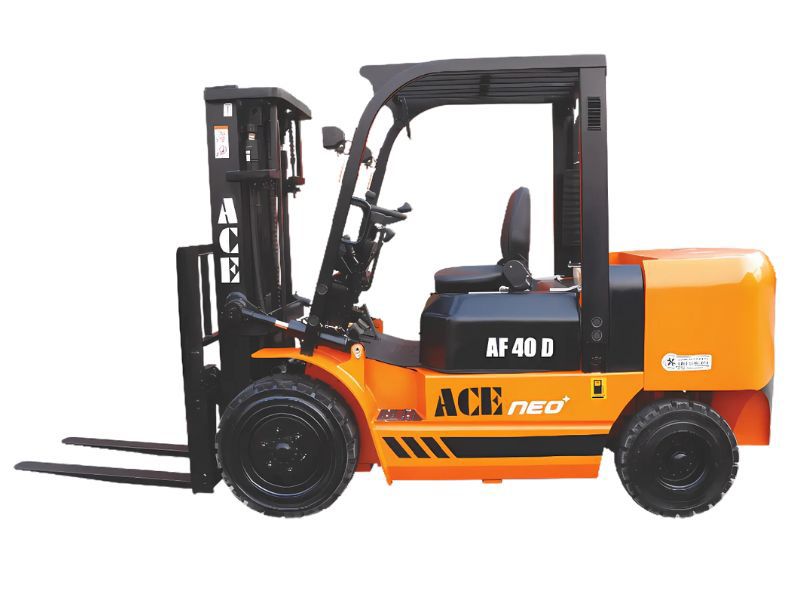

ACE AF 40D Base

Specifications of ACE AF 40D Base

Engine

• Max Torque @ Rated Speed 195 @ 1100-1500 Nm(Kgm)/rpm

Steering

• Turning radius 2700 mm

Operating Specifications

• Lifting Capacity 300 MM/S

Dimensions

• Fork L*W*T 1070 mm
• Max. Lifting Capacity 4000 Kg
• Overall height 4230 mm
• Overall Width 2300 mm
• Wheel Base 1835 mm

Hydraulic System

• Lowering speed(empty) 500 MM/S

Tires

• FRONT 28x9-15-12PR
• Rear 6.50 1010PR

Brakes

• Service brakes Hydraulic-Foot Pedal

Hydraulic Controls

• Steering Tilt Adjustable Power Steering

Undercarriage

• Parking Brakes Mechanical-Hand Lever

DRIVE

• Engine & make model S433

GENERAL SPECIFICATIONS

• Fuel Type Diesel

Speed

• Max Speeds 1/1 (Automatic)

TRACK

• Gradeability 18 %

DIESEL ENGINES

• No. of Cylinders 4

Blade

• Lift Height 3 Meter
